5*5 Compound Base Mat

Self adhesive modified bitumen waterproof membrane is a premium quality product that provides a robust waterproof barrier for roofs, walls, and foundations. It is made by saturating a polyester tire base (polyester felt or glass fiber felt) in SBS modified bitumen, and then finishing the upper surface with sands, mineral granules, PE film, or aluminum film. The bottom surface is coated with a self-adhesive layer and an isolation film, making it easy to install without the need for additional adhesives or tools.

This product is durable and long-lasting, offering protection against harsh weather conditions and water damage. It is versatile and suitable for various applications, including both above-ground and underground projects. The self-adhesive feature allows for quick and efficient installation, saving time and labor costs.

Our membranes come in a range of thicknesses and widths, and can be customized to fit your specific needs. They are manufactured with high-quality materials and meet international standards and certifications, ensuring their quality and reliability. With online technical support and a 1-year warranty, our customer support team is dedicated to providing assistance and ensuring customer satisfaction.

Categories: ,

Description

Fiberglass compound base mat is one kind of base mat of poly-cotton nonwoven and fiberglass mesh combination. It ismade by compounding some density fiberglass when producing non-woven, through drying in high temperature and finalizing technics.It is the basic mat for producing APP/SBS waterproof material.

  1. Widely used in waterproof material, such as waterproof membrane (SBS/APP modified bitumen) and asphalt shingle.
  2. It has high tensile strength and competitive price, no any shrinkage in producing.
  3. The weight for every type can decrease or increase accoring to customer requirement.

Product Description:

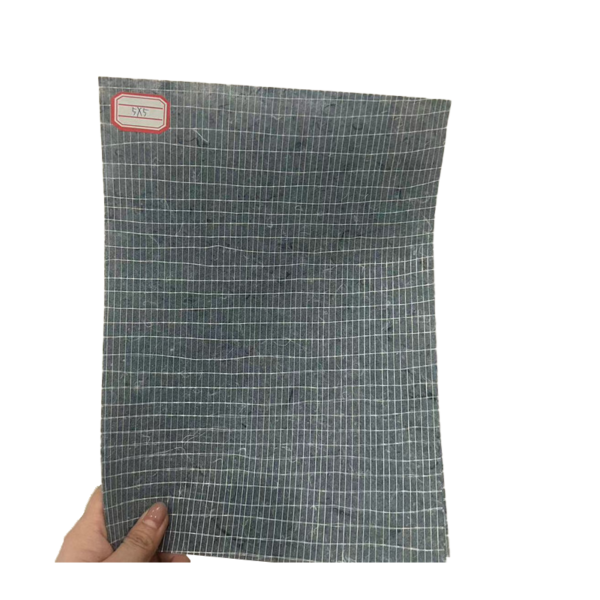

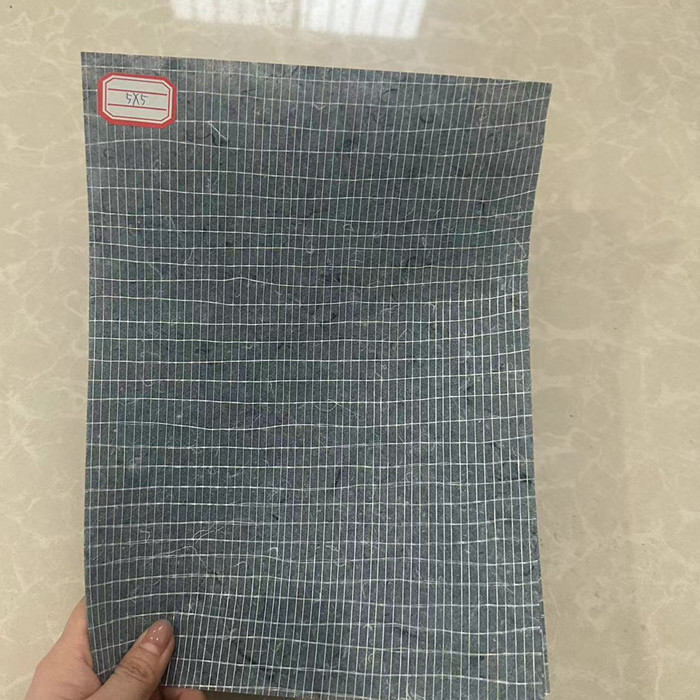

5×5 Compound Base Mat is a high-strength composite reinforcement material consisting of a 5×5 fiberglass leno weave scrim combined with polyester nonwoven layers. This composite structure delivers excellent tensile strength, tear resistance, and dimensional stability, making it ideal for use in SBS and APP modified bitumen waterproofing membranes.

Key Features:

  • 5×5 Leno Fiberglass Scrim: Provides strong reinforcement with balanced strength in both machine and cross directions.

  • Composite Design: Combines fiberglass scrim and spunbond polyester mat for enhanced flexibility and durability.

  • Excellent Bitumen Compatibility: Ensures uniform adhesion and lamination with SBS/APP bitumen membranes.

  • Thermally Stable: Maintains integrity and performance under high-temperature lamination and coating.

  • Lightweight & Durable: Offers strong reinforcement without significantly increasing membrane weight.

  • Smooth Surface: Enhances bitumen coating uniformity and production efficiency.

Applications:

  • SBS/APP Modified Bitumen Waterproofing Membranes

  • Roofing and underground waterproofing systems

  • Infrastructure waterproofing such as bridges, tunnels, and foundations

  • Base reinforcement for multi-layer waterproof membranes

Technical Specifications (Typical):

  • Mesh Size: 5×5 fiberglass scrim

  • Basis Weight: 140g–190g/m² (customizable)

  • Width: 1.0m – 1.2m (adjustable)

  • Roll Length: As required

  • Tensile Strength (MD/CD): ≥ 350 / 300 N/5cm

  • Heat Resistance: ≥ 150°C

  • Bitumen Absorption: Excellent

Why Choose Weifang Guanlong Waterproof Material Co., Ltd.?

✔ Specialist in Waterproof Base Materials.

We focus on producing and exporting high-quality compound base mat, spunbond polyester mat, fiberglass mat, polyester felt, and filament polyester mat—key materials for waterproofing membrane production.

✔ Complete Product Range.

From bitumen felt base mats to compound mats, we offer a full portfolio of nonwoven and composite materials widely used in SBS/APP modified bitumen membranes.

✔ Advanced Production Lines

Our factory operates modern compound base mat production lines and equipment for bitumen waterproof membrane machines, ensuring consistent quality and efficient output.

✔ Reliable Export Experience

We serve customers across Asia, the Middle East, and Europe with stable supply, competitive prices, and customized packaging.

✔ Technical Support & Customization

We offer technical advice, material selection guidance, and support for special product specifications to meet diverse customer needs.
