Description
Fiberglass compound base mat is one kind of base mat of poly-cotton nonwoven and fiberglass mesh combination. It ismade by compounding some density fiberglass when producing non-woven, through drying in high temperature and finalizing technics.It is the basic mat for producing APP/SBS waterproof material.
- Widely used in waterproof material, such as waterproof membrane (SBS/APP modified bitumen) and asphalt shingle.
- It has high tensile strength and competitive price, no any shrinkage in producing.
- The weight for every type can decrease or increase accoring to customer requirement.
Product Description:

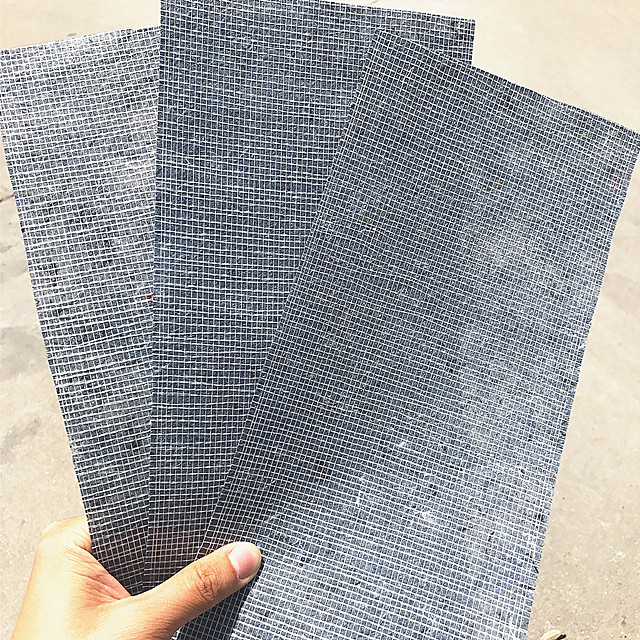

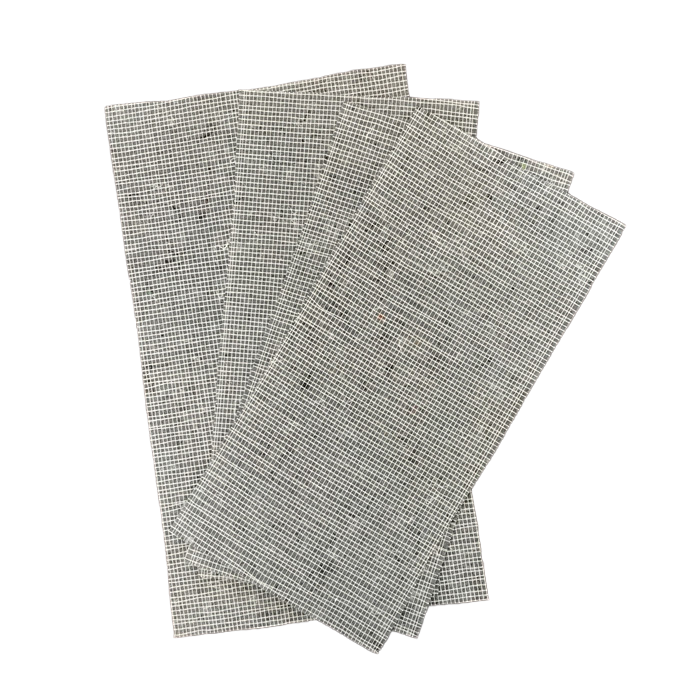

8×8 Compound Base Mat is a composite reinforcement material made by bonding an 8×8 fiberglass leno weave scrim with polyester nonwoven fabrics. This structure offers excellent tensile strength, dimensional stability, and bitumen compatibility, making it ideal for modified bitumen waterproofing membrane production.
Key Features:
-
8×8 Leno Fiberglass Scrim: Provides balanced tensile strength and tear resistance in both machine and cross directions.
-
Composite Structure: Combines fiberglass and polyester layers for high performance and flexibility.
-
Excellent Bitumen Compatibility: Ensures strong adhesion with SBS and APP modified membranes.
-
Thermal and Dimensional Stability: Maintains performance under high-temperature lamination.
-
Smooth Surface: Enhances coating uniformity and processing speed.
-
Cost-Effective Reinforcement: Well-suited for both manual and automated membrane production lines.
Applications:
-
SBS/APP Modified Bitumen Waterproofing Membranes
-
Roofing and underground waterproofing systems
-
Base reinforcement for compound felt
-
Infrastructure waterproofing (tunnels, bridges, etc.)
Technical Specifications (Typical):
-
Mesh Size: 8×8 (fiberglass scrim)
-
Basis Weight: 130g–180g/m² (customizable)
-
Width: 1.0m – 1.2m (adjustable)
-
Roll Length: As per requirement
-
Tensile Strength (MD/CD): ≥ 300 / 260 N/5cm
-
Heat Resistance: ≥ 150°C
-
Bitumen Absorption: Excellent
Why Choose Weifang Guanlong Waterproof Material Co., Ltd.?
✔ Specialist in Waterproof Base Materials.
We focus on producing and exporting high-quality compound base mat, spunbond polyester mat, fiberglass mat, polyester felt, and filament polyester mat—key materials for waterproofing membrane production.
✔ Complete Product Range.
From bitumen felt base mats to compound mats, we offer a full portfolio of nonwoven and composite materials widely used in SBS/APP modified bitumen membranes.
✔ Advanced Production Lines
Our factory operates modern compound base mat production lines and equipment for bitumen waterproof membrane machines, ensuring consistent quality and efficient output.
✔ Reliable Export Experience
We serve customers across Asia, the Middle East, and Europe with stable supply, competitive prices, and customized packaging.
✔ Technical Support & Customization
We offer technical advice, material selection guidance, and support for special product specifications to meet diverse customer needs.
