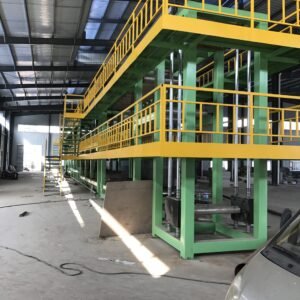

Description
The production line manufactures SBS/APP Modified Bitumen Waterproofing Membrane, which is widely used in industrial and civil buildings, such as roofs, basements, bathrooms, bridges, parks, swimming pools, and tunnels, for waterproofing and moisture-proofing.
-
Mixing Raw Materials
Workers mix bitumen, polymer (SBS or APP), talcum filler silo powder, engine oil, and other raw materials in modified mixer tanks (heated by heat-conducting oil to maintain temperature). This process produces modified bitumen. -
Coating the Carrier Nonwoven
The production line transfers the modified bitumen into coating tanks. Then, it coats the carrier nonwoven (reinforcement) with the modified bitumen. Finally, it covers the coated nonwoven with PE film, sand, or other surface materials, forming the bitumen membrane into rolls. -

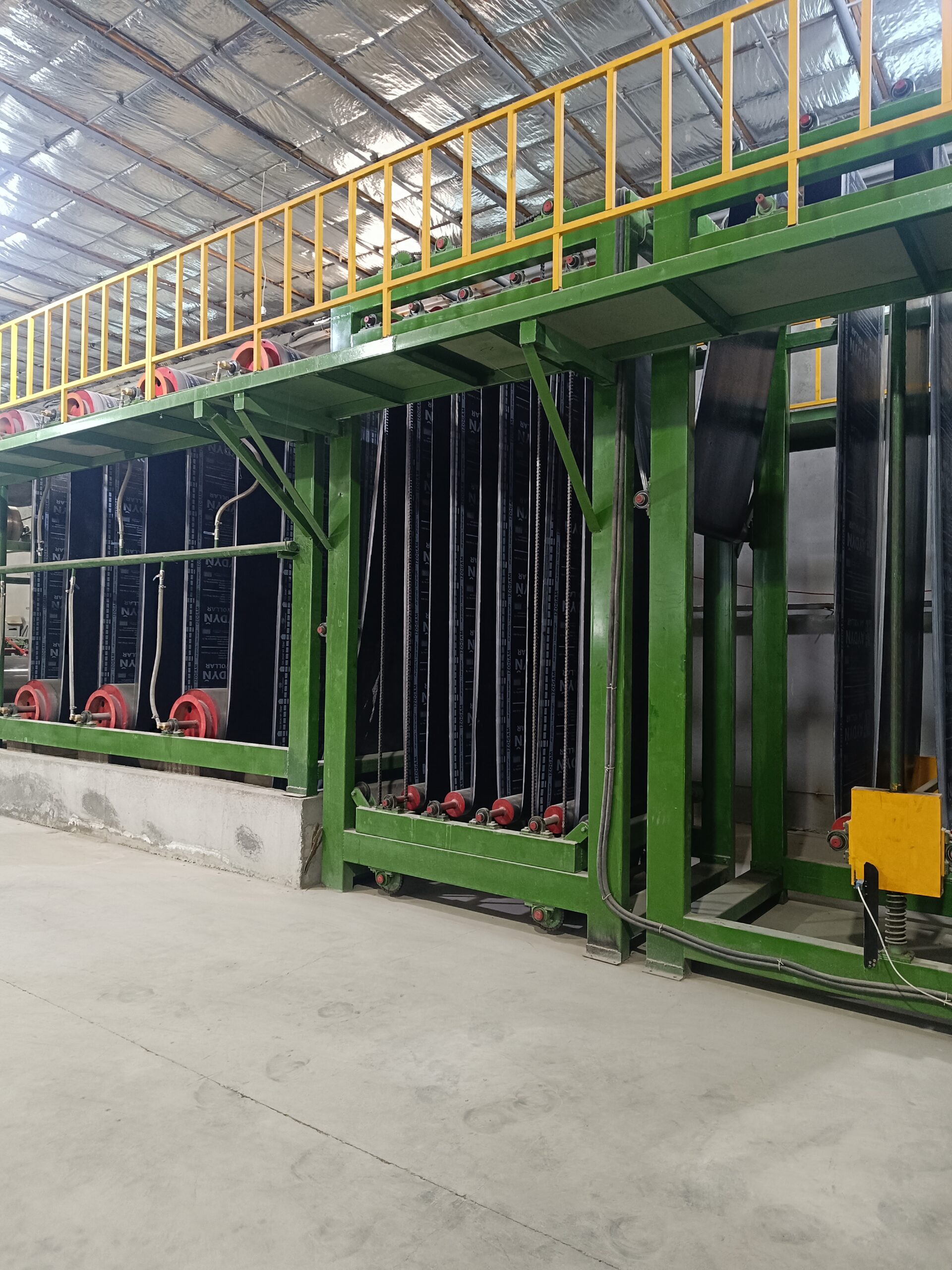

Cooling and Winding
The system cools the finished products using water and air before the winder rolls them into final rolls.
Overview:
Bitumen waterproof membranes are factory-produced rolls made with modified bitumen (SBS or APP) and reinforced with polyester mats, fiberglass, or composite base mats. These membranes are widely used in roofing, foundations, basements, bridges, and tunnels due to their excellent waterproofing performance, flexibility, and long service life.
Production Process:
-
Base Mat Feeding
-
Materials: Spunbond polyester mat, fiberglass mat, compound base mat (e.g., Leno 8×8, 9×9)
-
Purpose: Acts as the reinforcement layer and carrier for bitumen
-
-
Bitumen Coating
-
Bitumen Types:
-
SBS (Styrene-Butadiene-Styrene): Excellent cold flexibility and elongation
-
APP (Atactic Polypropylene): Superior heat resistance and UV stability
-
-
Method: Thermoplastic bitumen is applied on both sides of the base mat via coating heads
-
-
Surface Finishing
-
Upper Surface Options: PE film, sand, mineral granules, aluminum foil
-
Lower Surface Options: PE film or sand (for torch-on or self-adhesive use)
-
-
Cooling & Shaping
-
The coated sheet passes through water or air cooling systems to ensure dimensional stability
-
-
Edge Trimming and Slitting
-
Ensures clean, uniform roll width and consistent appearance
-
-
Rolling & Packaging
-
Roll size: Commonly 1m × 10m
-
Each roll is labeled, wrapped (PE bag or carton), and palletized for shipment
-
Key Materials Used:
| Material | Description |
|---|---|
| Bitumen | Petroleum-based, modified with SBS or APP for durability |
| Reinforcement Mat | Polyester mat, fiberglass mat, or composite mat |
| Surface Film | PE film, mineral granules, sand, foil |
| Anti-adhesive Film | Silicone-coated film for self-adhesive membranes |
Common Types of Bitumen Membranes:
| Type | Modifier | Key Feature | Application |
|---|---|---|---|
| SBS Modified | SBS | High flexibility, cold climates | Basements, bridges |
| APP Modified | APP | Heat resistance, UV stable | Roofs, sun-exposed areas |
| Self-Adhesive Bitumen | SBS | Easy to apply, no torch needed | Residential waterproofing |
| Aluminum Foil Bitumen | APP/SBS | Reflective surface | Exposed roofing & insulation |
Applications:
-
Flat and sloped roofing systems
-
Underground waterproofing (basements, foundations)
-
Bridge decks and tunnels
-
Retaining walls and wet areas
-
Parking decks and green roofs
Advantages of Factory-Produced Bitumen Membranes:
-
Consistent quality control
-
High tensile strength and elongation
-
Long service life (≥ 20 years)
-
Excellent weather, UV, and root resistance
-
Fast and efficient on-site installation
Why Choose Weifang Guanlong Waterproof Material Co., Ltd.?
✔ Specialist in Waterproof Base Materials.
We focus on producing and exporting high-quality compound base mat, spunbond polyester mat, fiberglass mat, polyester felt, and filament polyester mat—key materials for waterproofing membrane production.
✔ Complete Product Range.
From bitumen felt base mats to compound mats, we offer a full portfolio of nonwoven and composite materials widely used in SBS/APP modified bitumen membranes.
✔ Advanced Production Lines
Our factory operates modern compound base mat production lines and equipment for bitumen waterproof membrane machines, ensuring consistent quality and efficient output.
✔ Reliable Export Experience
We serve customers across Asia, the Middle East, and Europe with stable supply, competitive prices, and customized packaging.
✔ Technical Support & Customization
We offer technical advice, material selection guidance, and support for special product specifications to meet diverse customer needs.
