General Information

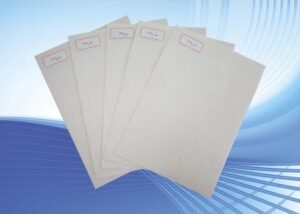

ISOFELT Mesh Reinforced Spunbond Long Fiber Polyester Nonwoven is a combination of spunbond polyester with fiberglass weaving mesh.We achieve the combination through a lamination process to enhance the mechanical properties in both longitudinal and transversal directions.This product can increase the tensile strength, tear & puncture resistance of your finished roofing products.
With 24 weaving mesh production lines, ISOFELT can produce fiberglass & polyester mesh with both plain & leno weaving methods. Based on customer needs, special tailor-made products are available to fulfill your diverse application requirements.
Application
ISOFELT Mesh Reinforced Spunbond Long Fiber Polyester Nonwoven serves as an ideal carrier material for SBS/APP modified bituminous waterproofing membranes.
Compared with non-reinforced polyester nonwovens, this reinforced material delivers higher tensile and tearing strength in both longitudinal and transversal directions. This enhanced strength supports high-speed production under high mechanical tension. The resulting bituminous waterproofing membranes perform better—especially in cold regions—by preventing joint area gapping caused by thermal contraction.
Technical Data Sheet
| Typical Properties | Unit | Test Method | Tolerance | Standard Value | |
| Product Specification | 160MRP | 200MRP | |||
| Composition | Spunbond Polyester + Fiberglass Mesh | ||||
| Mass Per Unit Area | g/m2 | DIN EN 29073-1 | -5% * | 160 | 200 |
| Thickness | mm | ±15% | 0.75 | 0.90 | |
| Max. Tensile Strength (MD/CMD) | N/5cm | DIN EN 29073-3 | -10% * | 600 / 500 | 1000 / 1000 |
| Elongation at Max. Strength (MD/CMD) | % | DIN EN 29073-3 | -15% * | 1.0 / 1.5 | 1.5 / 2.0 |
| Shrinkage 10min, 200℃ (MD/CMD) | % | ≤ | 0.5 / 0.5 | 0.5 / 0.5 | |
Remark:
1. * No upper limit.
2. Max. tensile strength subject to number of glass fiber filaments included in the specimen.
3. Special specifications are available based on customer requirements. (Nonwoven & mesh type can be changed to reach specific required strength.)
